Compact Environmental Sensor

Posted on 18th March 2022 at 12:32 pm.

Our latest solution integrates our solar powered ‘Compact’ base with an ITS Environmental Sensor, offering clients the ability to monitor the external environment, producing a wide range of air pollution data that can be used to inform and direct on issues of air pollution safety.

Air Quality Monitoring

This solution is a low-cost system that offers the ability to build a high-density ambient air quality monitoring network that records data in real-time.

With low power demands, this unit can be powered by our ‘Compact’ solar powered base for air quality monitoring in applications where space is limited, including but not limited to:

Work places / work areas
Construction site safety
Events
Town centres / cities
Urban roads / Highways

These applications make this product a useful tool for a variety of industries, organisations and projects concerned with air quality, such as schools, Tier 1 construction contractors, local authorities and traffic management companies.

MVIS Environmental Sensor on a pole in front of a Tree.

Perfect for temporary applications, this solution offers a very low cost alternative to static Air Quality monitoring stations and allows clients to cover more space, quickly and cost effectively.

This product’s bespoke hardware is manufactured in the UK and uses the latest generation of electrochemical sensor technology and LoRaWAN communication to collect and record real-time data onto its secure online dashboard.

Real Time Environmental Data

Data collected from this solution is displayed in real-time onto an online management dashboard. The status of each unit is displayed together with easy to read dials.
More detailed graphs allow clients to drill down and analyse the data on a minute by minute, day by day basis.

Fully customer-branded breakdown reports are also available from MVIS for our client’s convenience, making presenting and reporting on the data easier than ever.

Solar Powered Compact Base

When combined with our solar powered compact base, the applications of the ITS Environmental Sensor are greatly enhanced. Offering a small footprint, this unit can be deployed in many locations where competing solutions can’t be, enabling you to collect data where it may be dangerous or where there is limited space.

Being solar powered prevents the need for an external power source and offers extended run times in recommended conditions.

With hidden cabling, this unit is secured against vandalism or accidental damage and can be easily moved to the client’s requirements.

Key Specifications

Data communication options via 3G/4G/5G, WiFi or Ethernet
Additional GPS Module can be added
Power 12Vdc (optional 240Vac supply)
Environment Operating range: -18 to 50 Celsius
CE Certified
Capacity for up to 4 electrochemical sensors from a choice of : CO, SO2, O3, NO, NO2, H2S
Ultra-low noise sensing for gasses (ppb) and particulates (μg/m)
Photo Ionisation Detector (PID) for detecting VOCs with ionisation potentials < 10.6 eV
Formaldehyde sensor available
Particulate matter / dust sensor PM1, PM2.5, PM4, PM10
Environmental sensors – temperature, humidity and atmospheric pressure
Sensors are shipped calibrated but require 24hr stabilisation on boot up
All devices can be accessed remotely for troubleshooting, health checks, software updates, reconfiguration
Air quality sensors have a 24mth lifespan. Units come with a 12mth manufacturer’s warranty
Compact Base: Length – 880mm, Width – 610mm, Height – 3000mm, Weight – 180kg, Mast – 3m

Success at Highways UK and Traffex Scotland 2019

Posted on 20th November 2019 at 9:06 am.

Written by Ben Kettell

November has brought a few busy weeks for MVIS, with not one, but two successive trade shows in as many weeks. The final industry trade shows of the year kicked off with Highways UK 2019 at the Birmingham NEC on the 6th – 7th November which was then followed by Traffex Scotland 2019 at the SECC in Glasgow on the 13th – 14th November, both keeping the MVIS team on their feet, ready and waiting to network with those interested in what we can offer.

Highways UK was very well attended, from exhibitors to visitors and all those in between, there was scarcely a moment that the MVIS stand was empty of attentive visitors. With many new and old faces in attendance, Highways UK provided an invaluable opportunity to raise the profile of the MVIS product range to a highly interested and concentrated audience. The other exhibitors all put on their finest display, with some very impressive and entertaining stands and exhibits on show to represent the very best of the industry.

The following week brought Traffex Scotland, offering its true value to us in the form of the amazing geographical networking opportunity. Since the opening of our new depot in the North East, Scotland is a location that MVIS can cater to easily, paving the way for a whole new route of conversation for us at this show.

The guest speakers in attendance were exceptional, bringing the very best of innovation in the industry from across the UK to this one location in a celebration of industry excellence, success and hard work. As with Highways, we saw many familiar faces along with new faces who were interested in seeing what the MVIS team and product range had to offer.

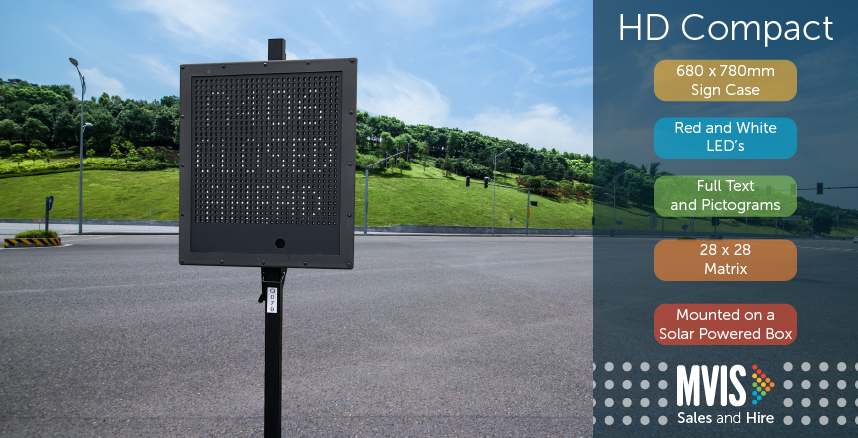

At both shows, our HD Compact VMS was one of the products that came out on top. With many visitors and exhibitors alike interested in this innovative and pioneering creation, we were delighted to be able to demonstrate its brilliance in such high profile and important environments.

Both events were a big success for us, bringing different strengths to the table that offered fantastic opportunities. For more information about future shows we will be attending, please contact marketing@m-vis.co.uk, or for more information about our products, please contact sales@m-vis.co.uk.

Planning for 2019

Posted on 27th January 2019 at 12:38 pm.

Written by Ben Kettell

With MVIS’ portfolio of innovative products and ITS solutions, you can ensure that both road users and workers remain well informed and safe throughout the period of works.

Timely Communications

When you know works are scheduled in, it’s important to make sure you have your signs ready in advance with clear messaging. However, we know that traffic situations are often unpredictable and can change within minutes.

Our WebStudio™ Technology and BartcoLive™ app allow you to update your messages in real-time as traffic situations change. This ensures road users are well informed, reducing driver frustration and keeping traffic moving smoothly.

Signs and Instructions

But it’s not just road users who benefit from accurate signage and timely communications. Such measures are also crucial for your workforce to keep vehicles moving at a safe speed and promote safety information.

MVIS’ HD Compact VMS is the first temporary VMS designed for use within work zones to improve safety. Small and light, the HD Compact VMS can be easily moved into place and is the perfect size for displaying speed limits and safety access information.

More than Highways Management

We don’t just supply mobile visual message signs, we offer CCTV solutions and our close partnership with Wavetronix allows us to support clients in need permanent ITS installations with reliable data and improved road efficiency. It’s not just about Highways management – we have a wealth of knowledge and expertise within the team here at MVIS. Our dedicated team take the time to work closely with your business and really understand the needs of your projects. What’s more, our dedicated team offer 24/7 support throughout your project to ensure your units continue to provide reliable, high quality performance with accurate messaging.

So whether you’re in construction, events, or retail planning, you can TRUST MVIS to deliver high quality, proven and reliable solutions to keep your industry moving.

MVIS in 2019

After the success of 2018, we have a very exciting year coming up in 2019 here at MVIS. Last year we welcomed new talent to the team at MVIS and celebrated the success and progression of our Apprentices though promotions and awards and this year we hope to welcome even more.

We’ll also be attending a number of events and exhibitions throughout 2019, starting with Traffex from 2^nd – 4^th April. If you’re heading down to the event, make sure you pop by and say hello. We’re on stand G025 and our team will be on hand to showcase our latest products and answer any questions.

Make sure you keep an eye on our Twitter account @mvisltd and blog to keep up to date with what we’re getting up to.

To see how MVIS can help you planning for the year ahead, get in touch with our friendly team on 01629 580 570 or email us sales@m-vis.co.uk
