Vehicle Activated Speed Sign (VASS)

DETECTION, CALMING & ENFORCEMENT WITH VMS ANPR

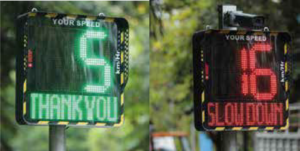

The Vehicle activated speed sign is a highly efficient and cost-effective traffic calming device suitable for all types of roads. radar speed display offers excellent readability from a distance of 300 meters, featuring ultra-bright tricolor LED speed displays and programmable messages. With 99% accurate data collection for both directions, including traffic analysis, it proves to be effective in promoting traffic calming and road awareness.

The system offers the possibility of integration with our specialized VMS ANPR camera technology, thereby augmenting safety measures and facilitating the collection of detailed data concerning instances of excessive speeding. This integration effectively amalgamates an awareness display with a camera solution, serving as a protective measure for both drivers and the broader community by curbing incidents of over-speeding.

It combines an awareness display with a camera solution to enhance safety. This solution operates both indoors and outdoors, alerting drivers to their speeds, enforcing speed limits, and providing detailed data on instances of over-speeding, including vehicle information, number plates, images, and timestamps.



VMS ANPR MVIS

Key Features

  • Display Size – 16 inch Full Colour Speed Display.
  • ANPR Camera – Provides detailed data for over-speeding vehicle information including number plates, images & time stamps.
  • Speed Limit – Set you own speed & violation limit for your road or site.
  • Operational – Suitable for all weather conditions both day & night.
  • Battery Box – Voltage: 12V up to 4 weeks run time using 3x 100AH Batteries
  • Message – Customised Messages along with the speed display.

Technical Specifications

Trailer or Pole Mounted

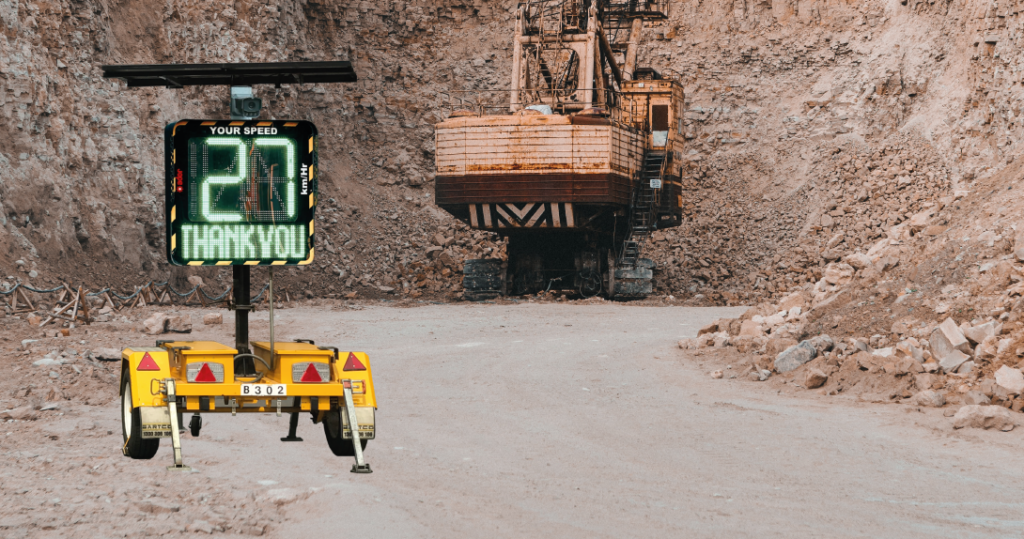

The Vehicle Activated Speed Sign can be mounted onto a pole at the roadside, or if you are looking for a more portable solution we can attach it to one of our VMS Trailers with:

  • Overall length: 2420mm (1620mm with towing tongue removed)
  • Width (travel position): 1620mm – 1595mm
  • Width (operating position): 1620mm
  • Height (travel position): 2045mm
  • Height (max operating position): 3200mm
  • Weight: 580kg
  • Coupling: 40mm towing eye / quick release, 50mm ball

Power

  • Voltage: 12V
  • Solar Panels: 2 x solar panels
  • Operation on batteries / solar: Indefinite under recommended conditions
